TER INDUSTRIES LIMITED

SNIEC E3.570

Headquarters:

Target Groups:

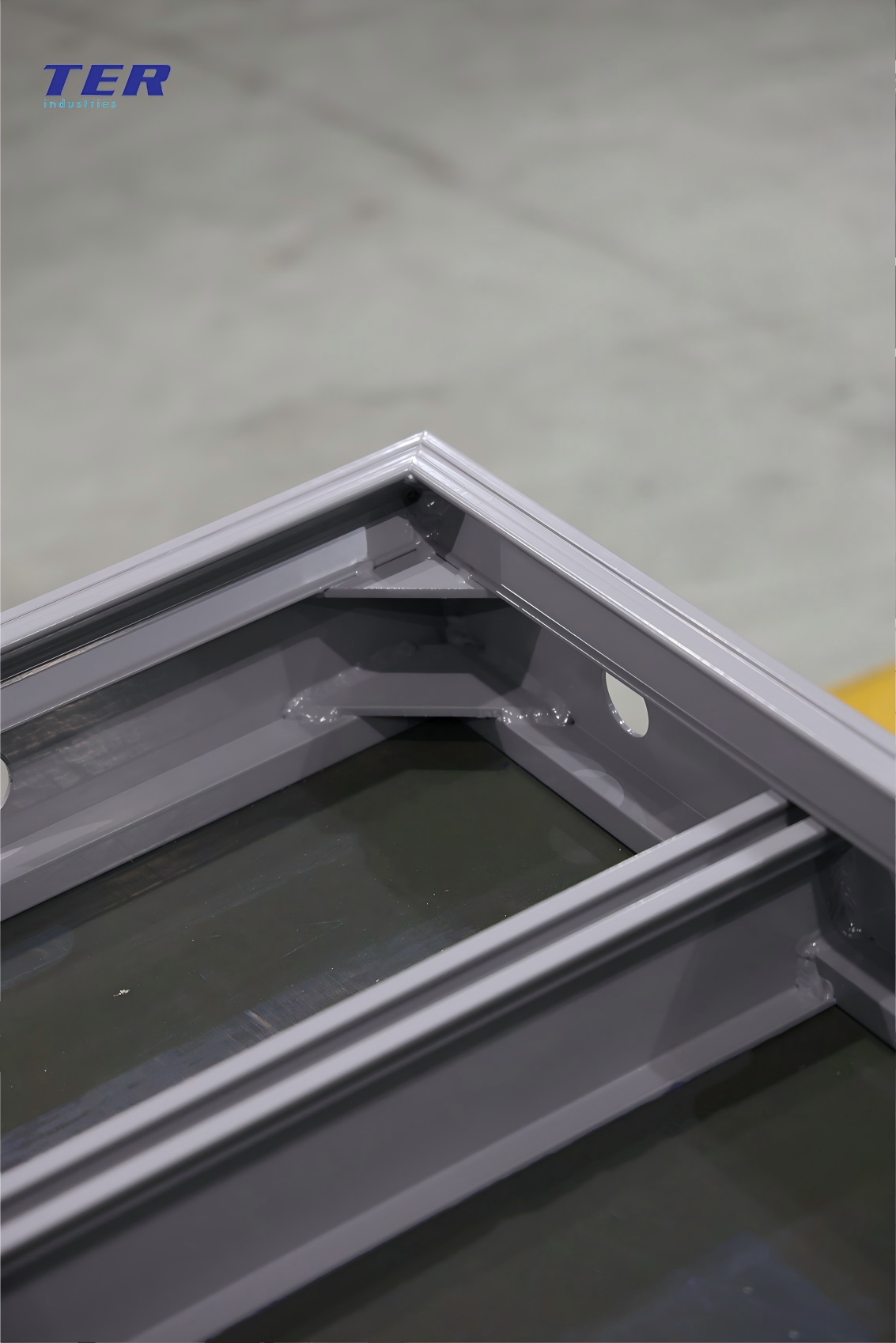

TERSLAB-Aluminium Slab Formwork

Product Category: Formwork plates

Save the product

Product Introduction

TERSLAB is designed to support reinforced concrete slabs with thicknesses ranging from 200 mm to 600 mm. The values shown in this chart are calculated considering a construction live load of 250 daN/m2 (250 kg/m2) and a maximum allowable deflection of L/300 at the center of the panel. The load carried by each prop can be determined using the following formula: Design load (kg/m2) = Concrete thickness (m) × 2,600 kg/m3 + 250 kg/m2 where: - 2,600 kg/m3 = density of reinforced concrete, - 250 kg/m2 = construction live load allowance. This approach ensures that the TERSLAB system meets both structural performance and serviceability requirements under typical site conditions。

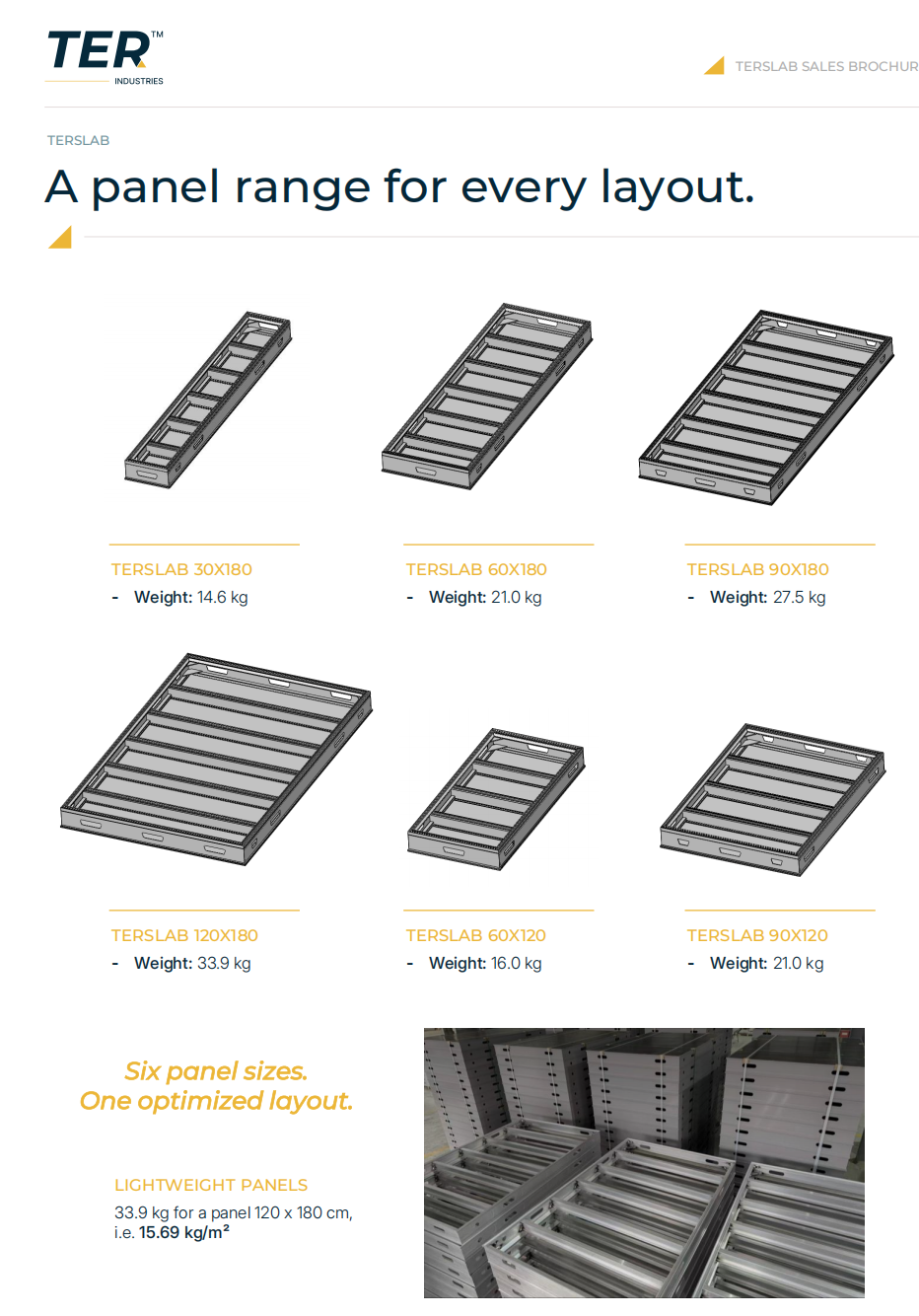

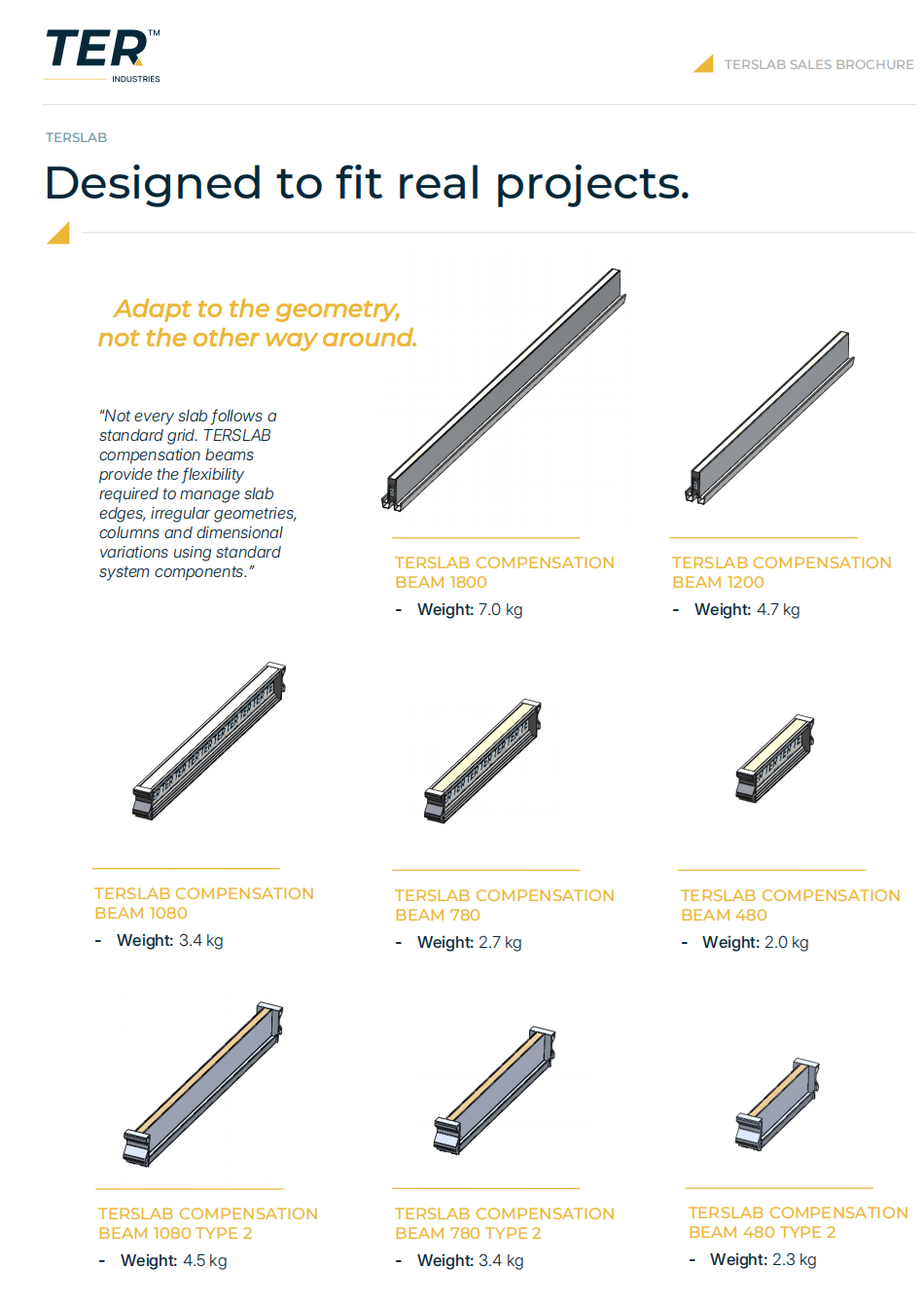

Product Brochure
